Replace Lemo Fiber Assy(Lemo connector with Fiber caber) of LDX100

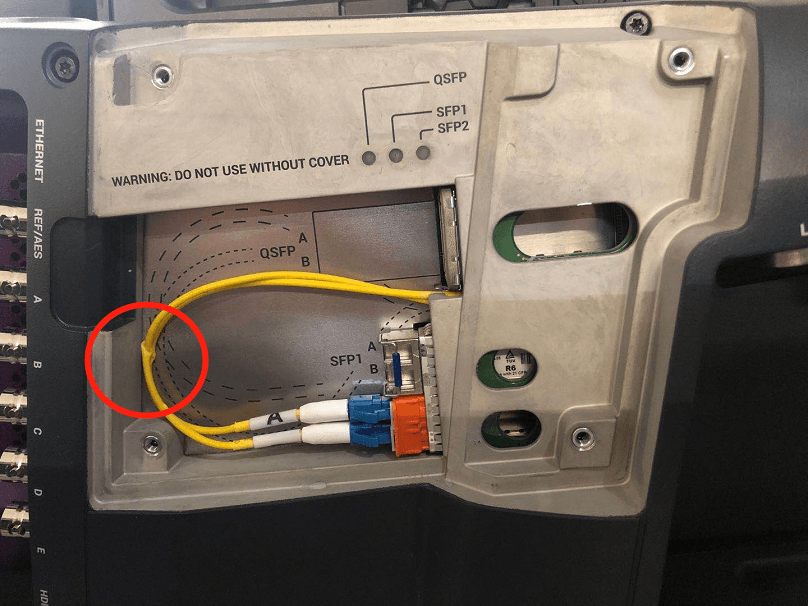

When LDX100 was found interior extruded fiber cable, like below picture, or you want to replace the Lemo connector or fiber cable, you will need to order the new Lemo Fiber Assy and replace it

How to replace Lemo Fiber Assy

Follow below steps to replace the Lemo fiber assy

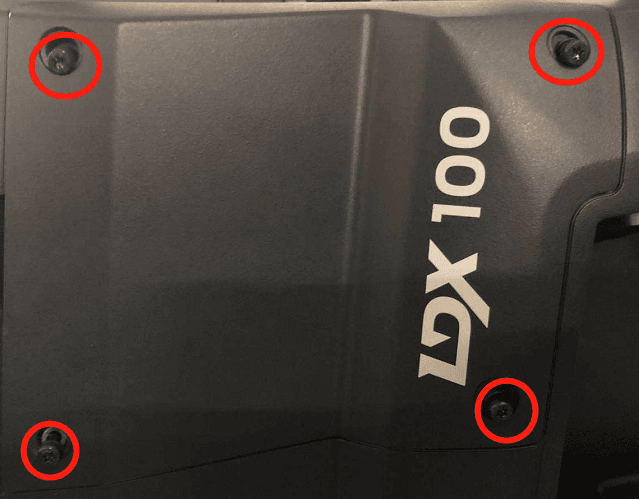

1. Open the Right Sub Cover of LDX100(SFP cover)

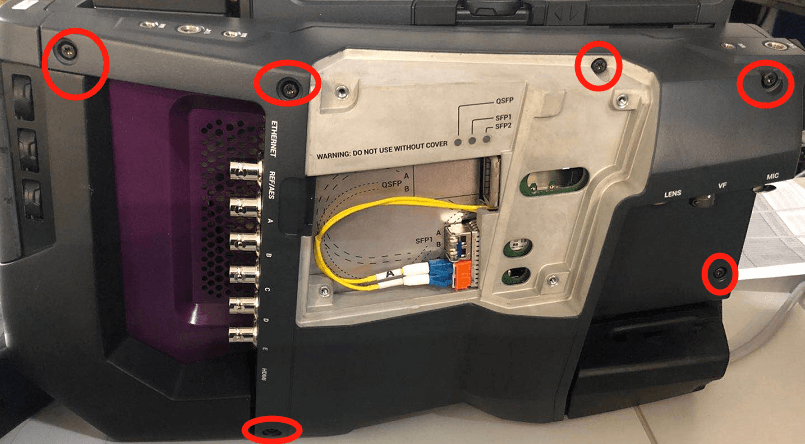

2. Open the Right Cover of LDX100

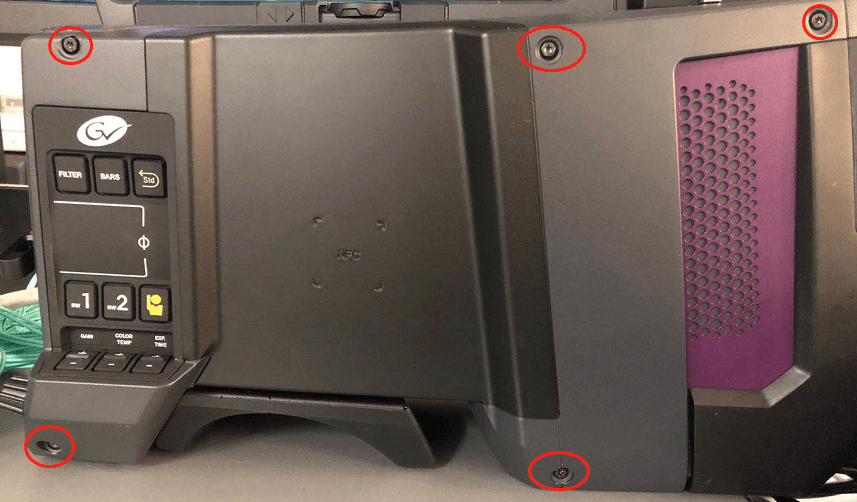

3. Open the Left Cover of LDX100


4. Undo screw between the SFP cages that secure the fibers.

5. Disconnect fibers from SFP module

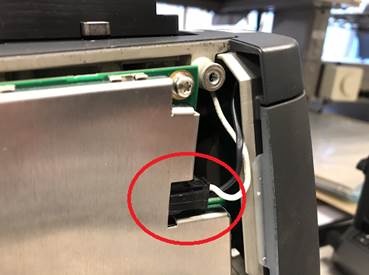

6. Disconnect black and white power cable from Power board


7. Open the Rear Cover of LDX100

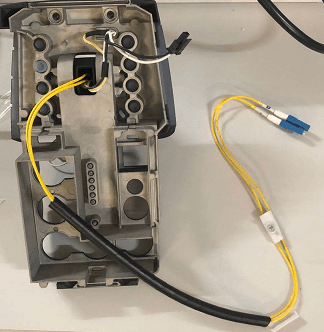

8. now you see the Lemo Fiber Assy

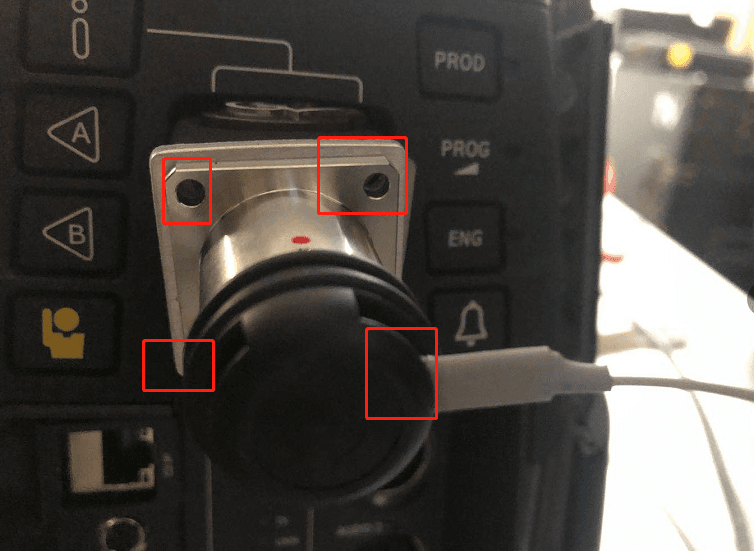

9. Remove screws from LEMO connector and guide the fibers carefully through the back panel boards.
